[STS3] 파일 업로드(2)

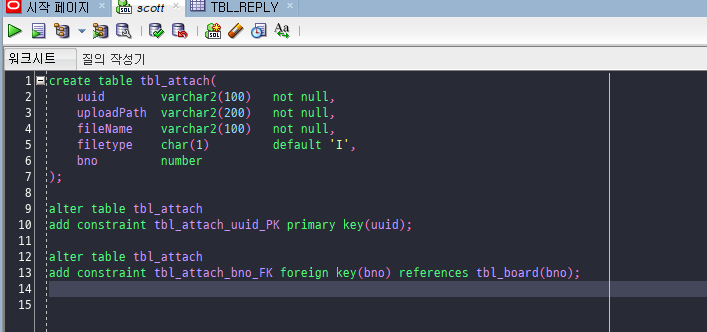

DB에 테이블 생성



create table tbl_attach(
    uuid        varchar2(100)   not null,
    uploadPath  varchar2(200)   not null,
    fileName    varchar2(100)   not null,
    filetype    char(1)         default 'I',
    bno         number
);

alter table tbl_attach
add constraint tbl_attach_uuid_PK primary key(uuid);

alter table tbl_attach
add constraint tbl_attach_bno_FK foreign key(bno) references tbl_board(bno);

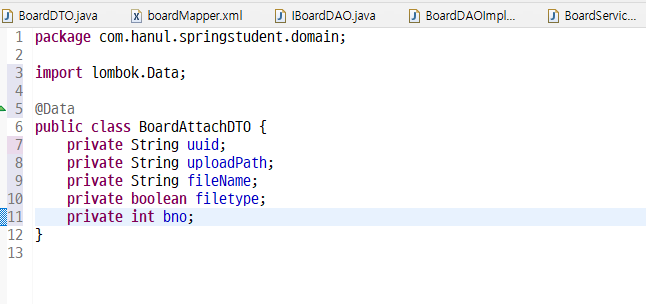

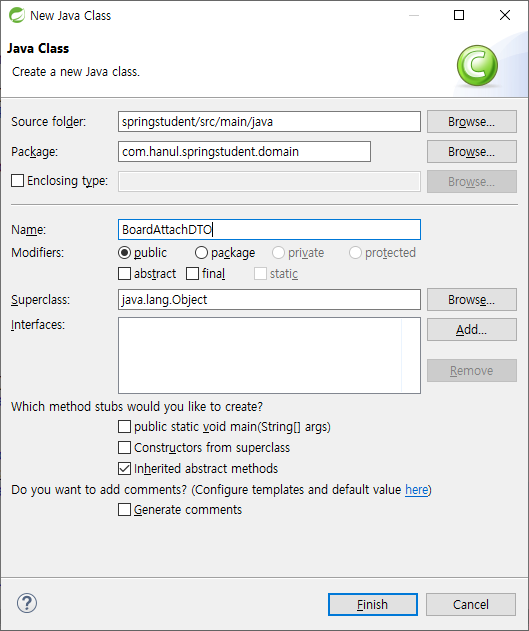

src/main/java 경로에 있는 domain 폴더에 BoardAttachDTO 파일 생성 후 작성

@Data
public class BoardAttachDTO {
	private String uuid;
	private String uploadPath;
	private String fileName;
	private boolean filetype;
	private int bno;
}

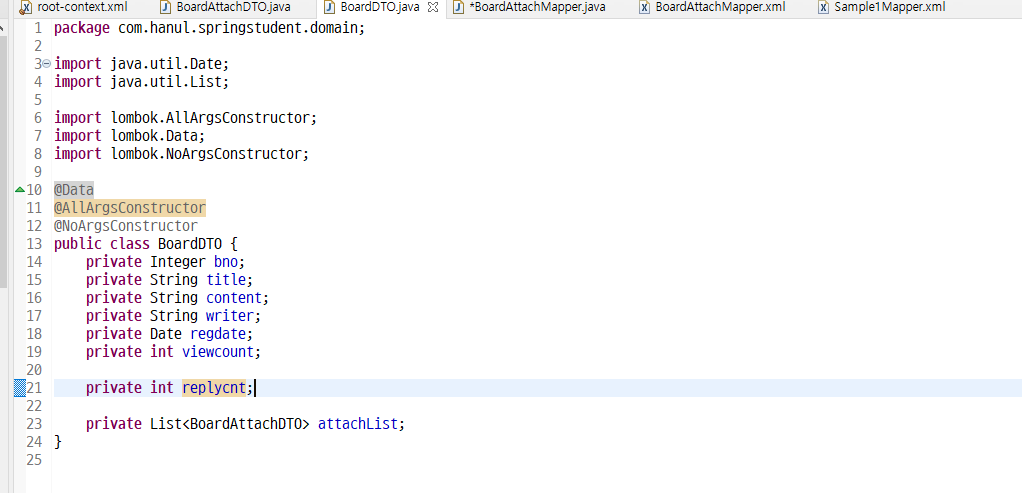

BoardDTO 파일 하단에 코드 추가

private List<BoardAttachDTO> attachList;

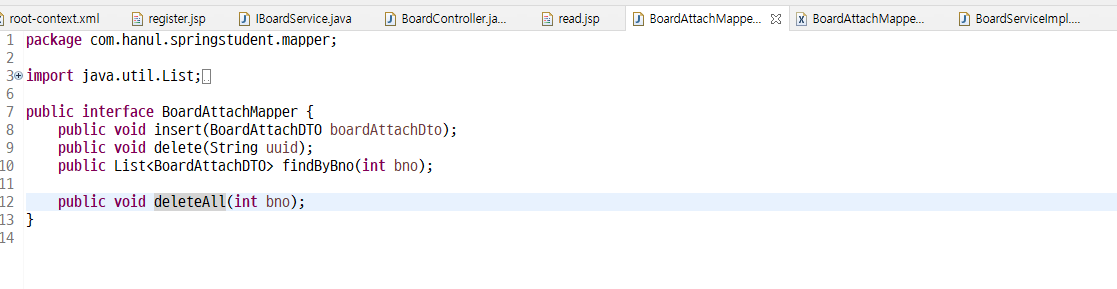

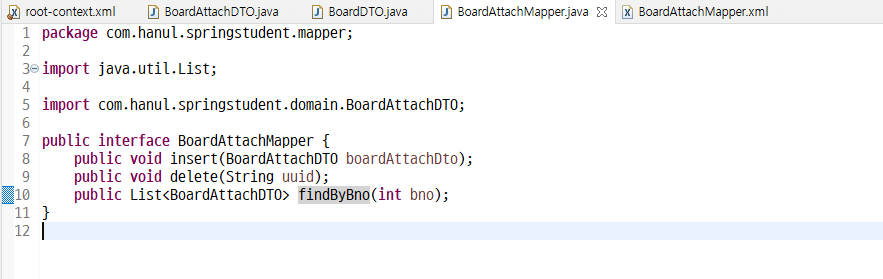

src/main/java 경로에 있는 mapper 패키지에 BoardAttachMapper 인터페이스 생성 후 작성

public interface BoardAttachMapper {
	public void insert(BoardAttachDTO boardAttachDto);
	public void delete(String uuid);
	public List<BoardAttachDTO> findByBno(int bno);
}

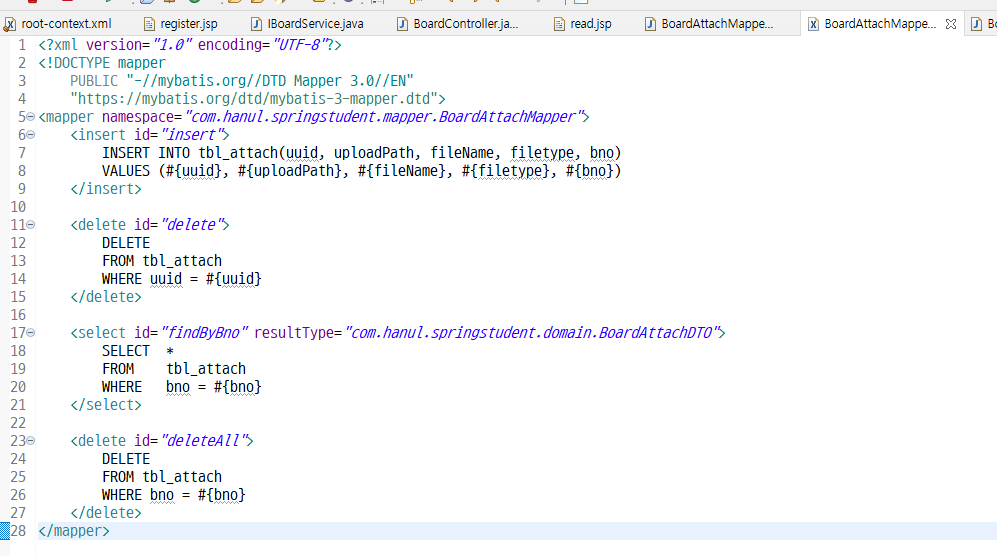

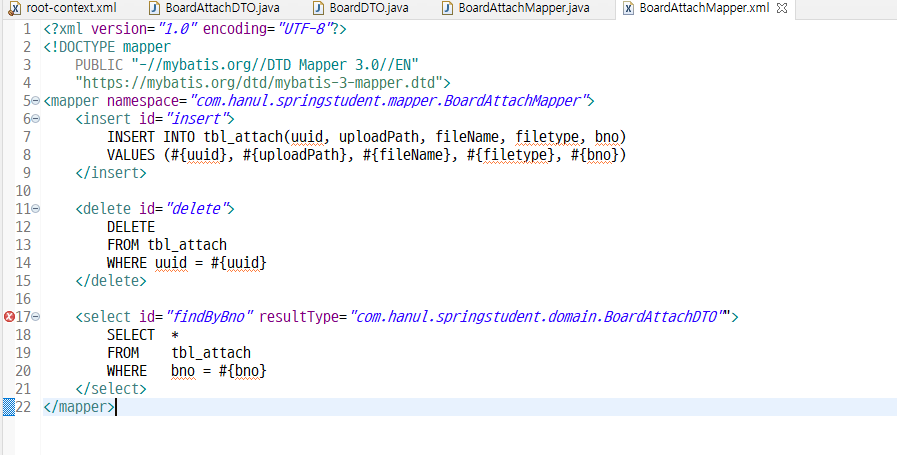

src/main/resources경로에 있는 mappers 패키지에  BoardAttachMapper.xml 파일 생성 후 작성

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper
    PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
    "https://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.hanul.springstudent.mapper.BoardAttachMapper">
	<insert id="insert">
		INSERT INTO tbl_attach(uuid, uploadPath, fileName, filetype, bno)
		VALUES (#{uuid}, #{uploadPath}, #{fileName}, #{filetype}, #{bno})
	</insert>

	<delete id="delete">
		DELETE
		FROM tbl_attach
		WHERE uuid = #{uuid}
	</delete>

	<select id="findByBno" resultType="com.hanul.springstudent.domain.BoardAttachDTO">
		SELECT	*
		FROM	tbl_attach
		WHERE	bno = #{bno}
	</select>
</mapper>

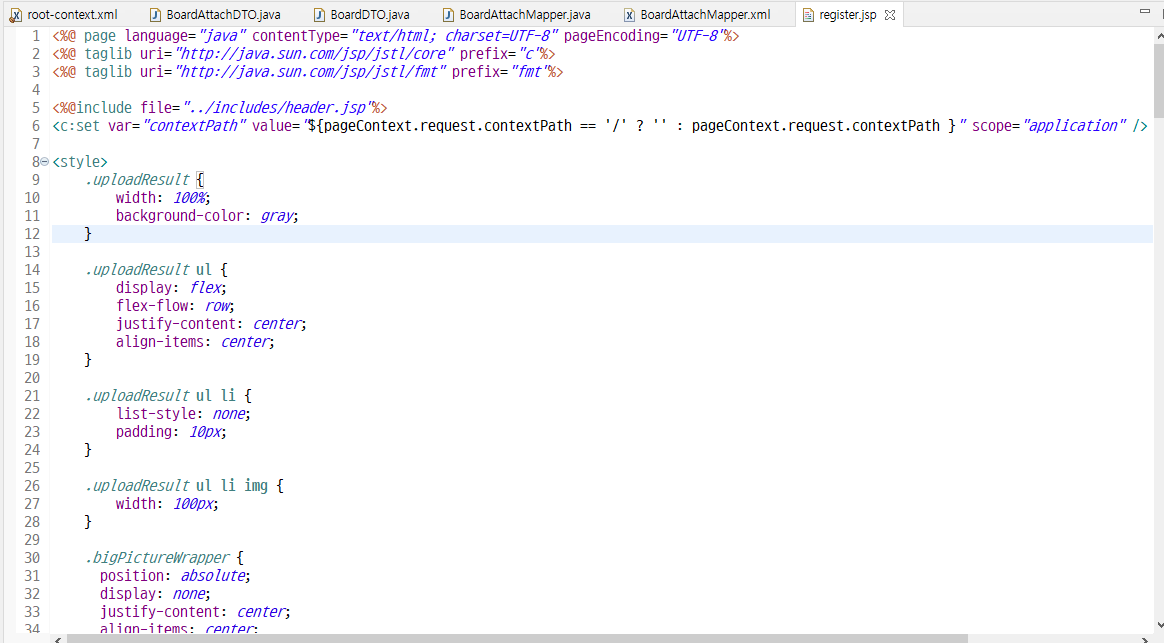

register.jsp 파일 수정

<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%>
<%@ taglib uri="http://java.sun.com/jsp/jstl/core" prefix="c"%>
<%@ taglib uri="http://java.sun.com/jsp/jstl/fmt" prefix="fmt"%>

<%@include file="../includes/header.jsp"%>
<c:set var="contextPath" value="${pageContext.request.contextPath == '/' ? '' : pageContext.request.contextPath }" scope="application" />

<style>
	.uploadResult {
		width: 100%;
		background-color: gray;
	}

	.uploadResult ul {
		display: flex;
		flex-flow: row;
		justify-content: center;
		align-items: center;
	}

	.uploadResult ul li {
		list-style: none;
		padding: 10px;
	}

	.uploadResult ul li img {
		width: 100px;
	}

	.bigPictureWrapper {
	  position: absolute;
	  display: none;
	  justify-content: center;
	  align-items: center;
	  top:0%;
	  width:100%;
	  height:100%;
	  background-color: gray;
	  z-index: 100;
	}

	.bigPicture {
	  position: relative;
	  display:flex;
	  justify-content: center;
	  align-items: center;
	}

	.bigPicutre img {
		width: 600px;
	}
</style>

<script type="text/javascript">
$(document).ready(function() {
	var formObj = $("form[role='form']");

	$("button[type='submit']").on("click", function(e){
		e.preventDefault();

		console.log("submit clicked");
		var str = "";

		$(".uploadResult ul li").each(function(i, obj){
			var jobj = $(obj);

			console.dir(jobj);
			console.log("-------------------------");
			console.log(jobj.data("filename"));

			str += "<input type='hidden' name='attachList["+i+"].fileName' value='"+jobj.data("filename")+"'>";
			str += "<input type='hidden' name='attachList["+i+"].uuid' value='"+jobj.data("uuid")+"'>";
			str += "<input type='hidden' name='attachList["+i+"].uploadPath' value='"+jobj.data("path")+"'>";
			str += "<input type='hidden' name='attachList["+i+"].filetype' value='"+ jobj.data("type")+"'>";
		});

		console.log(str);
		formObj.append(str).submit();
	});

	var regex = new RegExp("(.*?)\.(exe|sh|zip|alz)$");
	var maxSize = 5242880; //5MB

	function checkExtension(fileName, fileSize) {
		if(fileSize >= maxSize) {
			alert("파일 사이즈 초과");
			return false;
		}

		if(regex.test(fileName)) {
			alert("해당 종류의 파일은 업로드할 수 없습니다.");
			return false;
		}

		return true;
	}

	$("input[type='file']").change(function(e){

		var formData = new FormData();

		var inputFile = $("input[name='uploadFile']");

		var files = inputFile[0].files;

		for(var i = 0; i < files.length; i++){

			if(!checkExtension(files[i].name, files[i].size) ){
				return false;
			}

			formData.append("uploadFile", files[i]);
		}

		$.ajax({
			url: "${contextPath}/uploadAjaxAction",
			processData: false,
			contentType: false,data:
			formData,type: "POST",
			dataType:"json",
			success: function(result){
				console.log(result);
				showUploadResult(result);
			}
		}); //$.ajax
	});

	function showUploadResult(uploadResultArr) {

	    if(!uploadResultArr || uploadResultArr.length == 0) {
	    	return;
	    }

	    var uploadUL = $(".uploadResult ul");
	    var str ="";

	    $(uploadResultArr).each(function(i, obj) {
			if(obj.image){
				var fileCallPath = encodeURIComponent(obj.uploadPath+ "/s_" + obj.uuid + "_" + obj.fileName);
				str += "<li data-path='" + obj.uploadPath + "'";
				str +=" data-uuid='" + obj.uuid + "' data-filename='" + obj.fileName + "' data-type='" + obj.image + "'"
				str +" ><div>";
				str += "<span> " + obj.fileName + "</span>";
				str += "<button type='button' data-file=\'" + fileCallPath + "\' "
				str += "data-type='image' class='btn btn-warning btn-circle'><i class='fa fa-times'></i></button><br>";
				str += "<img src='${contextPath}/display?fileName=" + fileCallPath + "'>";
				str += "</div>";
				str +"</li>";
			} else {
				var fileCallPath = encodeURIComponent(obj.uploadPath + "/" + obj.uuid + "_" + obj.fileName);
			    var fileLink = fileCallPath.replace(new RegExp(/\\/g),"/");

				str += "<li "
				str += "data-path='" + obj.uploadPath + "' data-uuid='" + obj.uuid + "' data-filename='" + obj.fileName + "' data-type='" + obj.image + "' ><div>";
				str += "<span> " + obj.fileName + "</span>";
				str += "<button type='button' data-file=\'" + fileCallPath + "\' data-type='file' "
				str += "class='btn btn-warning btn-circle'><i class='fa fa-times'></i></button><br>";
				str += "<img src='${contextPath}/resources/img/attach.png'></a>";
				str += "</div>";
				str +"</li>";
			}
		});

		uploadUL.append(str);
	}

	$(".uploadResult").on("click", "button", function(e) {

		console.log("delete file");

		var targetFile = $(this).data("file");
		var type = $(this).data("type");
		var targetLi = $(this).closest("li");

		$.ajax({
			url: "${contextPath}/deleteFile",
			data: {fileName: targetFile, type:type},
			dataType:"text",
			type: "POST",
			success: function(result){
				alert(result);

				targetLi.remove();
			}
		}); //$.ajax
	});

});
</script>
<div class="row">
<c:set var="contextPath" value="${pageContext.request.contextPath == '/' ? '' : pageContext.request.contextPath }" scope="application" />
  <div class="col-lg-12">
    <h1 class="page-header">Board Register</h1>
  </div>
  <!-- /.col-lg-12 -->
</div>
<!-- /.row -->

<div class="row">
  <div class="col-lg-12">
    <div class="panel panel-default">

      <div class="panel-heading">Board Register</div>
      <!-- /.panel-heading -->
      <div class="panel-body">

        <form role="form" action="${contextPath}/board/register" method="post">
          <div class="form-group">
            <label>Title</label> <input class="form-control" name="title">
          </div>

          <div class="form-group">
            <label>Text area</label>
            <textarea class="form-control" rows="3" name="content"></textarea>
          </div>

          <div class="form-group">
            <label>Writer</label> <input class="form-control" name="writer">
          </div>
          <button type="submit" class="btn btn-default">Submit
            Button</button>
          <button type="reset" class="btn btn-default">Reset Button</button>
        </form>

      </div>
      <!--  end panel-body -->

    </div>
    <!--  end panel-body -->
  </div>
  <!-- end panel -->
</div>
<!-- /.row -->

<div class="row">
  <div class="col-lg-12">
    <div class="panel panel-default">

      <div class="panel-heading">File Attach</div>
      <!-- /.panel-heading -->
      <div class="panel-body">
        <div class="form-group uploadDiv">
            <input type="file" name="uploadFile" multiple>
        </div>

        <div class="uploadResult">
          <ul>

          </ul>
        </div>


      </div>
      <!--  end panel-body -->

    </div>
    <!--  end panel-body -->
  </div>
  <!-- end panel -->
</div>

<%@include file="../includes/footer.jsp"%>

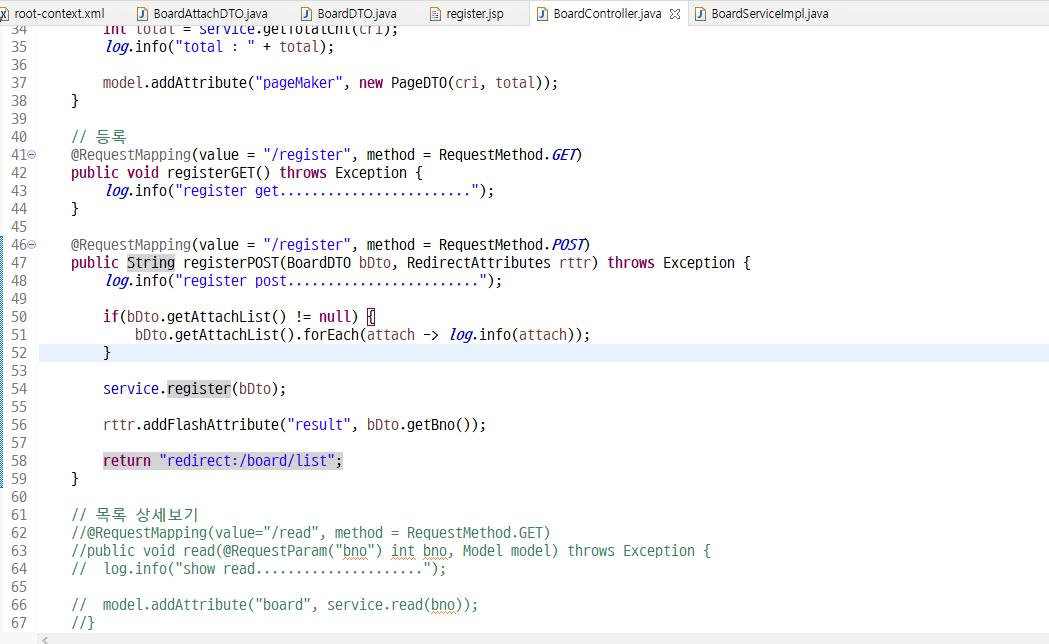

BoardController 의 등록메소드 수정

@RequestMapping(value = "/register", method = RequestMethod.POST)
public String registerPOST(BoardDTO bDto, RedirectAttributes rttr) throws Exception {
    log.info("register post........................");

    if(bDto.getAttachList() != null) {
        bDto.getAttachList().forEach(attach -> log.info(attach));
    }

    service.register(bDto);

    rttr.addFlashAttribute("result", bDto.getBno());

    return "redirect:/board/list";
}



BoardServiceImpl 수정

@Autowired
private BoardAttachMapper attachMapper;

@Transactional
@Override
public void register(BoardDTO bDto) throws Exception {
    bDao.create(bDto);

    if (bDto.getAttachList() == null || bDto.getAttachList().size() <= 0) {
        return;
    }

    bDto.getAttachList().forEach(attach -> {
        attach.setBno(bDto.getBno());
        attachMapper.insert(attach);
    });
}

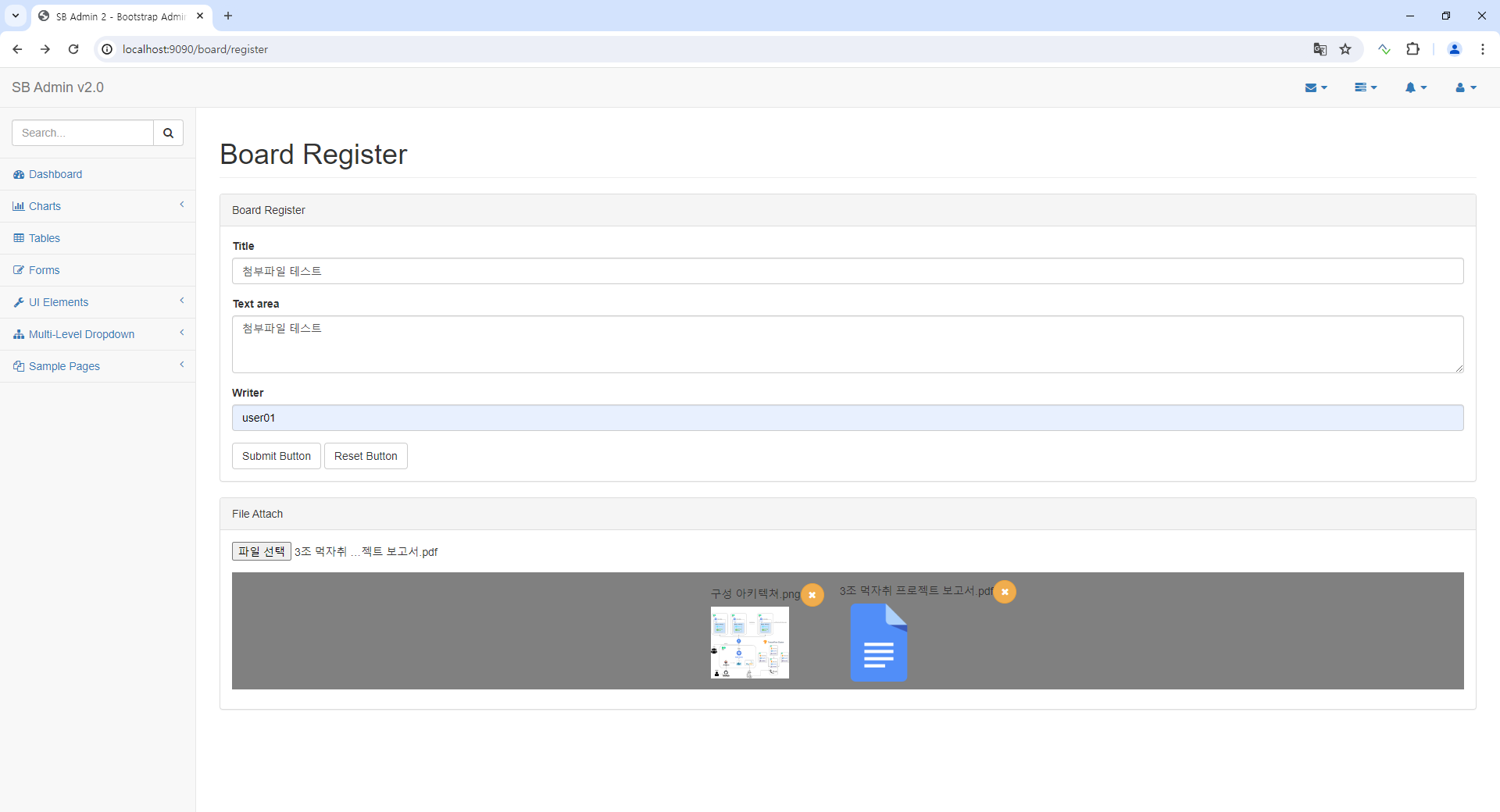

톰캣 구동 후 로컬에서 파일첨부 해보기

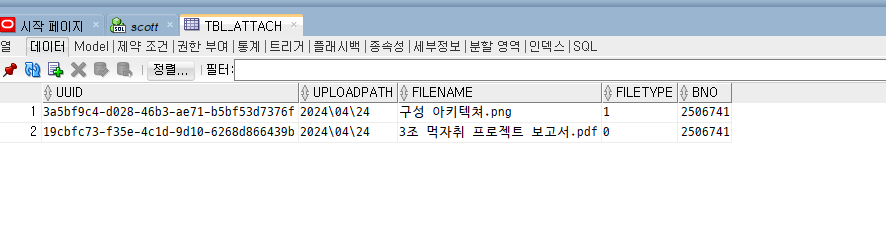

등록 후 DB에서 확인하면 잘 등록되어있음

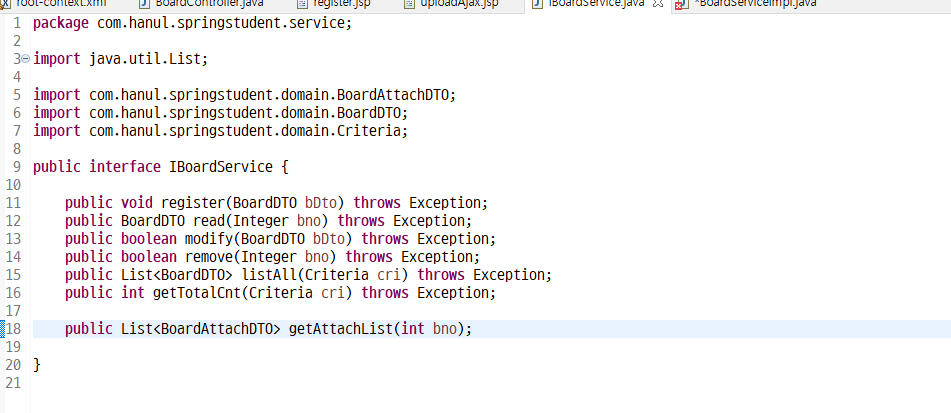

IBoardService 인터페이스에 첨부파일 조회 추상메소드 추가

public List<BoardAttachDTO> getAttachList(int bno);

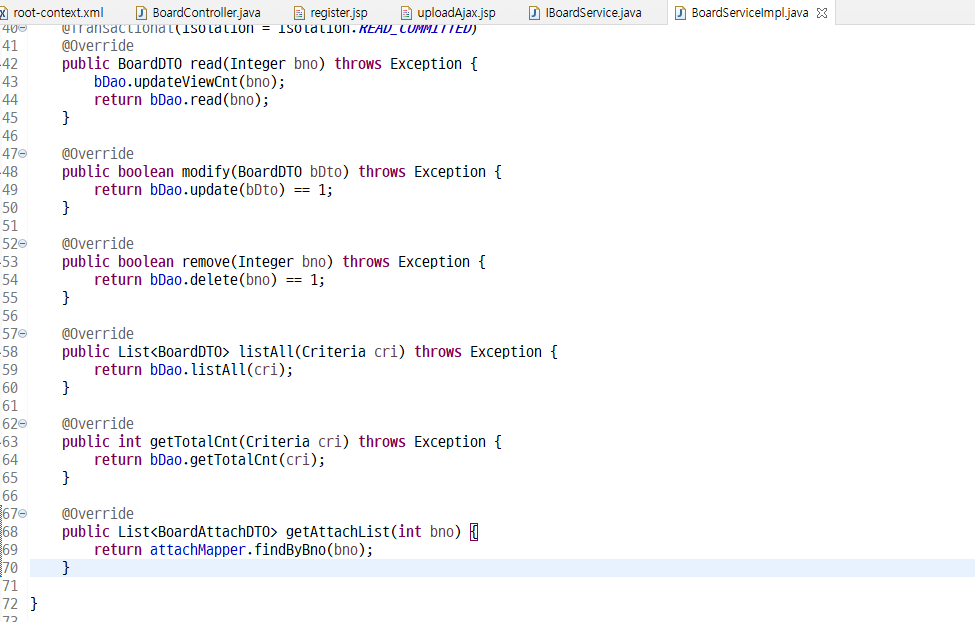

BoardServiceImpl에서 첨부파일 조회 메소드 구현

@Override
public List<BoardAttachDTO> getAttachList(int bno) {
    return attachMapper.findByBno(bno);
}

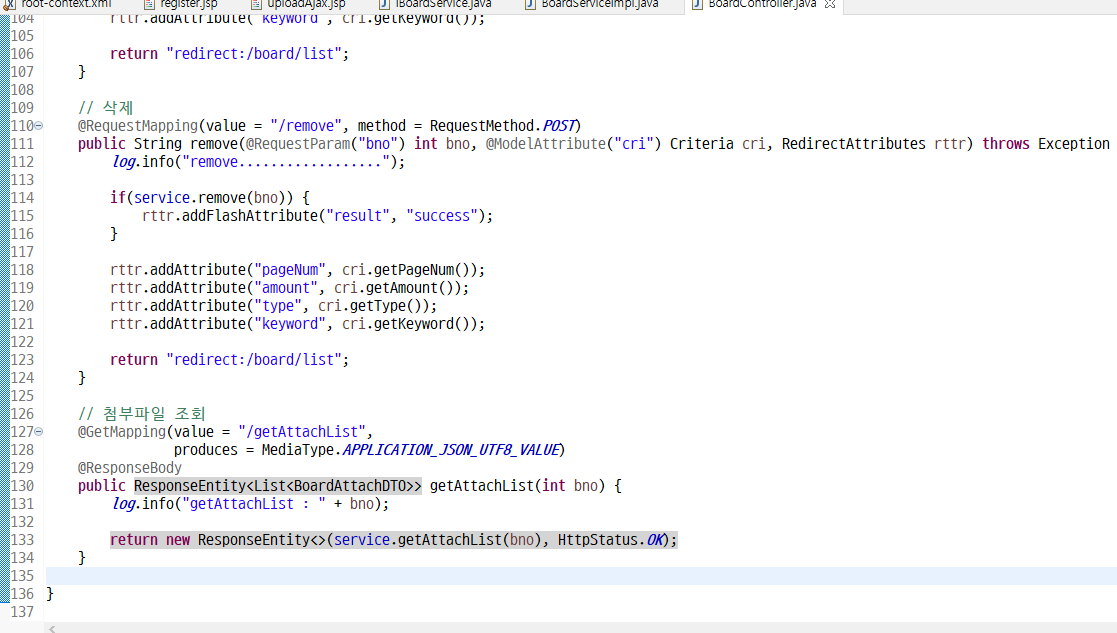

BoardController에 첨부파일 조회 코드 추가

// 첨부파일 조회
@GetMapping(value = "/getAttachList",
            produces = MediaType.APPLICATION_JSON_UTF8_VALUE)
@ResponseBody
public ResponseEntity<List<BoardAttachDTO>> getAttachList(int bno) {
    log.info("getAttachList : " + bno);

    return new ResponseEntity<>(service.getAttachList(bno), HttpStatus.OK);
}



read.jsp 수정

<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%>
<%@ taglib uri="http://java.sun.com/jsp/jstl/core" prefix="c"%>
<%@ taglib uri="http://java.sun.com/jsp/jstl/fmt" prefix="fmt"%>

<%@include file="../includes/header.jsp"%>
<c:set var="contextPath" value="${pageContext.request.contextPath == '/' ? '' : pageContext.request.contextPath }" scope="application" />
<style>
	.uploadResult {
		width:100%;
		background-color: gray;
	}

	.uploadResult ul{
		display:flex;
		flex-flow: row;
		justify-content: center;
		align-items: center;
	}

	.uploadResult ul li {
		list-style: none;
		padding: 10px;
		align-content: center;
		text-align: center;
	}

	.uploadResult ul li img{
		width: 100px;
	}

	.uploadResult ul li span {
		color:white;
	}

	.bigPictureWrapper {
		position: absolute;
		display: none;
		justify-content: center;
		align-items: center;
		top:0%;
		width:100%;
		height:100%;
		background-color: gray;
		z-index: 100;
		background:rgba(255,255,255,0.5);
	}

	.bigPicture {
		position: relative;
		display:flex;
		justify-content: center;
		align-items: center;
	}

	.bigPicture img {
		width:600px;
	}
</style>
<div class="row">
  <div class="col-lg-12">
    <h1 class="page-header">Board Read</h1>
  </div>
  <!-- /.col-lg-12 -->
</div>
<!-- /.row -->

<div class="row">
  <div class="col-lg-12">
    <div class="panel panel-default">

      <div class="panel-heading">Board Read Page</div>
      <!-- /.panel-heading -->
      <div class="panel-body">

         <div class="form-group">
           <label>Bno</label> <input class="form-control" name="bno" value="${board.bno }" readonly="readonly">
         </div>

         <div class="form-group">
           <label>Title</label> <input class="form-control" name="title" value="${board.title }" readonly="readonly">
         </div>

         <div class="form-group">
           <label>Text area</label>
           <textarea class="form-control" rows="3" name="content" readonly="readonly">${board.content }</textarea>
         </div>

         <div class="form-group">
           <label>Writer</label> <input class="form-control" name="writer" value="${board.writer }" readonly="readonly">
         </div>

         <button data-oper="modify" class="btn btn-default">Modify</button>
		 <button data-oper="list" class="btn btn-info">List</button>

		 <form id="operForm" action="${contextPath}/board/modify" method="get">
	  		 <input type="hidden" id="bno" name="bno" value="${board.bno}">
	  		 <input type="hidden" id="pageNum" name="pageNum" value="${cri.pageNum}">
	  		 <input type="hidden" id="amount" name="amount" value="${cri.amount}">
			 <input type="hidden" name="type" value="${cri.type}">
			 <input type="hidden" name="keyword" value="${cri.keyword}">
		 </form>
      </div>
      <!--  end panel-body -->

    </div>
    <!--  end panel-body -->
  </div>
  <!-- end panel -->
</div>
<!-- /.row -->

<div class='bigPictureWrapper'>
  <div class='bigPicture'>
  </div>
</div>

<div class="row">
  <div class="col-lg-12">
    <div class="panel panel-default">

      <div class="panel-heading">Files</div>
      <!-- /.panel-heading -->
      <div class="panel-body">

        <div class="uploadResult">
          <ul>
          </ul>
        </div>
      </div>
      <!--  end panel-body -->
    </div>
    <!--  end panel-body -->
  </div>
  <!-- end panel -->
</div>
<!-- /.row -->

<div class='row'>
  <div class="col-lg-12">

    <!-- /.panel -->
    <div class="panel panel-default">
      <div class="panel-heading">
        <i class="fa fa-comments fa-fw"></i> Reply
        <button id='addReplyBtn' class='btn btn-primary btn-xs pull-right'>New Reply</button>
      </div>

      <!-- /.panel-heading -->
      <div class="panel-body">
        <ul class="chat">
        </ul>
        <!-- ./ end ul -->
      </div>
      <!-- /.panel .chat-panel -->

	  <div class="panel-footer"></div>
	</div>
  </div>
  <!-- ./ end row -->
</div>

<div class="modal fade" id="myModal" tabindex="-1" role="dialog" aria-labelledby="myModalLabel" aria-hidden="true">
	<div class="modal-dialog">
		<div class="modal-content">
			<div class="modal-header">
				<button type="button" class="close" data-dismiss="modal" aria-hidden="true">&times;</button>
				<h4 class="modal-title" id="myModalLabel">REPLY MODAL</h4>
            </div>
            <div class="modal-body">
            	<div class="form-group">
            		<label>ReplyText</label>
            		<input class="form-control" name="replytext" value="New Reply!!!!">
            	</div>
            	<div class="form-group">
            		<label>Replyer</label>
            		<input class="form-control" name="replyer" value="replyer">
            	</div>
				<div class="form-group">
					<label>Reply Date</label>
					<input class="form-control" name="replyDate" value="2018-01-01 13:13">
				</div>
            </div>
			<div class="modal-footer">
        		<button id="modalModifyBtn" type="button" class="btn btn-warning">Modify</button>
        		<button id="modalRemoveBtn" type="button" class="btn btn-danger">Remove</button>
        		<button id="modalRegisterBtn" type="button" class="btn btn-primary">Register</button>
        		<button id="modalCloseBtn" type="button" class="btn btn-default">Close</button>
      		</div>
    	</div>
          <!-- /.modal-content -->
	</div>
<!-- /.modal-dialog -->
</div>
 <!-- /.modal -->

<script type="text/javascript" src="${contextPath}/resources/js/reply.js"></script>
<script type="text/javascript">
window.onload = function() {
	history.pushState(null, null, location.href);
    window.onpopstate = function() {
	alert("sss");

        history.go(1);
	};
};

$(document).ready(function() {
	var bnoValue = "${board.bno}";
	var replyUL = $(".chat");

	showList(1);

	function showList(page) {
		console.log("show list " + page);

		replyService.getList(
				{bno:bnoValue, contextPath:"${contextPath}", page: page || 1 },
				function(replyCnt, list) {
					console.log("replyCnt: "+ replyCnt );
					console.log("list: " + list);
					console.log(list);

					if(page == -1){
						pageNum = Math.ceil(replyCnt/10.0);
						showList(pageNum);
						return;
					}

					var str="";

					if(list == null || list.length == 0){
						return;
					}

					for (var i = 0, len = list.length || 0; i < len; i++) {
						str +="<li class='left clearfix' data-rno='"+list[i].rno+"'>";
						str +="  <div><div class='header'><strong class='primary-font'>["
							+ list[i].rno+"] "+list[i].replyer+"</strong>";
						str +="    <small class='pull-right text-muted'>"
							+ replyService.displayTime(list[i].updatedate)+"</small></div>";
						str +="    <p>"+list[i].replytext+"</p></div></li>";
					}

					replyUL.html(str);

					showReplyPage(replyCnt);
		});//end function
	}//end showList

    var pageNum = 1;
    var replyPageFooter = $(".panel-footer");

    function showReplyPage(replyCnt) {
    	var endNum = Math.ceil(pageNum / 10.0) * 10;
    	var startNum = endNum - 9;

    	var prev = startNum != 1;
    	var next = false;

    	if(endNum * 10 >= replyCnt) {
    		endNum = Math.ceil(replyCnt/10.0);
    	}

    	if(endNum * 10 < replyCnt) {
    		next = true;
    	}

    	var str = "<ul class='pagination pull-right'>";

    	if(prev) {
    		str+= "<li class='page-item'><a class='page-link' href='"+(startNum -1)+"'>Previous</a></li>";
    	}

    	for(var i = startNum ; i <= endNum; i++) {
    		var active = pageNum == i? "active":"";

    		str+= "<li class='page-item "+active+" '><a class='page-link' href='"+i+"'>"+i+"</a></li>";
    	}

    	if(next) {
    		str+= "<li class='page-item'><a class='page-link' href='"+(endNum + 1)+"'>Next</a></li>";
    	}

    	str += "</ul></div>";

    	console.log(str);

    	replyPageFooter.html(str);
    }

    replyPageFooter.on("click","li a", function(e) {
    	e.preventDefault();
    	console.log("page click");

    	var targetPageNum = $(this).attr("href");

    	console.log("targetPageNum: " + targetPageNum);

    	pageNum = targetPageNum;

    	showList(pageNum);
     });

    var modal = $(".modal");
    var modalInputReplyText = modal.find("input[name='replytext']");
    var modalInputReplyer = modal.find("input[name='replyer']");
    var modalInputReplyDate = modal.find("input[name='replyDate']");

    var modalModifyBtn = $("#modalModifyBtn");
    var modalRemoveBtn = $("#modalRemoveBtn");
    var modalRegisterBtn = $("#modalRegisterBtn");

    $("#modalCloseBtn").on("click", function(e){
    	modal.modal("hide");
    });


    $("#addReplyBtn").on("click", function(e){
    	modal.find("input").val("");
    	modalInputReplyDate.closest("div").hide();
    	modal.find("button[id !='modalCloseBtn']").hide();

    	modalRegisterBtn.show();

    	$(".modal").modal("show");
    });

    // 새로운 댓글 처리
    modalRegisterBtn.on("click", function(e) {
    	var reply = {
    			replytext: modalInputReplyText.val(),
    			replyer:modalInputReplyer.val(),
    			contextPath:"${contextPath}",
    			bno:bnoValue
    		};

        replyService.add(reply, function(result){
        	alert(result);

        	modal.find("input").val("");
        	modal.modal("hide");

        	showList(-1);
        });
	});

    $(".chat").on("click", "li", function(e){
    	var reply = {
    		rno : $(this).data("rno"),
    		contextPath:"${contextPath}",
    	};

    	replyService.get(reply, function(reply){
    		modalInputReplyText.val(reply.replytext);
    		modalInputReplyer.val(reply.replyer);
    		modalInputReplyDate.val(replyService.displayTime(reply.regdate)).attr("readonly","readonly");
    		modal.data("rno", reply.rno);

    		modal.find("button[id !='modalCloseBtn']").hide();
    		modalModifyBtn.show();
    		modalRemoveBtn.show();

    		$(".modal").modal("show");
    	});
    });

    modalModifyBtn.on("click", function(e){
    	var reply = {
    			rno:modal.data("rno"),
    			replytext: modalInputReplyText.val(),
    			contextPath:"${contextPath}"
    		};

    	replyService.update(reply, function(result) {
    		alert(result);

     	    modal.modal("hide");
     	    showList(pageNum);
     	});
    });

    modalRemoveBtn.on("click", function (e) {
    	var reply = {
    			rno : modal.data("rno"),
    			contextPath:"${contextPath}"
    		};

    	replyService.remove(reply, function(result) {
    		alert(result);

    		modal.modal("hide");
    		showList(pageNum);
    	});
    });
});
</script>
<script type="text/javascript">
$(document).ready(function() {
	var operForm = $("#operForm");
		$("button[data-oper='modify']").on("click", function(e){
	  	operForm.attr("action","${contextPath}/board/modify").submit();
	});

	$("button[data-oper='list']").on("click", function(e){
		operForm.find("#bno").remove();
		operForm.attr("action","${contextPath}/board/list")
		operForm.submit();
	});
});
</script>

<script>
$(document).ready(function() {
	  (function() {
	  	var bno = "${board.bno}";

	    $.getJSON("${contextPath}/board/getAttachList", {bno: bno}, function(arr) {

	       console.log(arr);

	       var str = "";

	       $(arr).each(function(i, attach){

	         if(attach.filetype){
	           var fileCallPath =  encodeURIComponent(attach.uploadPath+ "/s_" + attach.uuid +"_" + attach.fileName);

	           str += "<li data-path='" + attach.uploadPath + "' data-uuid='" + attach.uuid + "' data-filename='" + attach.fileName + "' data-type='" + attach.filetype + "' ><div>";
	           str += "<img src='${contextPath}/display?fileName=" + fileCallPath+"'>";
	           str += "</div>";
	           str +"</li>";
	         } else {
	           str += "<li data-path='" + attach.uploadPath + "' data-uuid='" + attach.uuid + "' data-filename='" + attach.fileName + "' data-type='" + attach.filetype+"' ><div>";
	           str += "<span> "+ attach.fileName + "</span><br/>";
	           str += "<img src='${contextPath}/resources/img/attach.png'></a>";
	           str += "</div>";
	           str +"</li>";
	         }
	       });

	       $(".uploadResult ul").html(str);
	     });//end getjson
	  })();//end function

	  $(".uploadResult").on("click","li", function(e){

	    console.log("view image");

	    var liObj = $(this);

	    var path = encodeURIComponent(liObj.data("path")+"/" + liObj.data("uuid")+"_" + liObj.data("filename"));

	    if(liObj.data("type")){
	      showImage(path.replace(new RegExp(/\\/g),"/"));
	    } else {
	      self.location ="${contextPath}/download?fileName=" + path;
	    }


	  });

	  function showImage(fileCallPath){
	    $(".bigPictureWrapper").css("display","flex").show();

	    $(".bigPicture")
	    .html("<img src='${contextPath}/display?fileName="+fileCallPath+"' >")
	    .animate({width:"100%", height: "100%"}, 1000);

	  }

	  $(".bigPictureWrapper").on("click", function(e){
	    $(".bigPicture").animate({width:"0%", height: "0%"}, 1000);
	    setTimeout(function(){
	      $(".bigPictureWrapper").hide();
	    }, 1000);
	  });
	});

</script>
<%@include file="../includes/footer.jsp"%>



BoardAttachMapper 인터페이스에서 첨부파일 삭제 추상메소드 추가

public void deleteAll(int bno);



BoardAttachMapper.xml에 delete문 추가

<delete id="deleteAll">
    DELETE
    FROM tbl_attach
    WHERE bno = #{bno}
</delete>

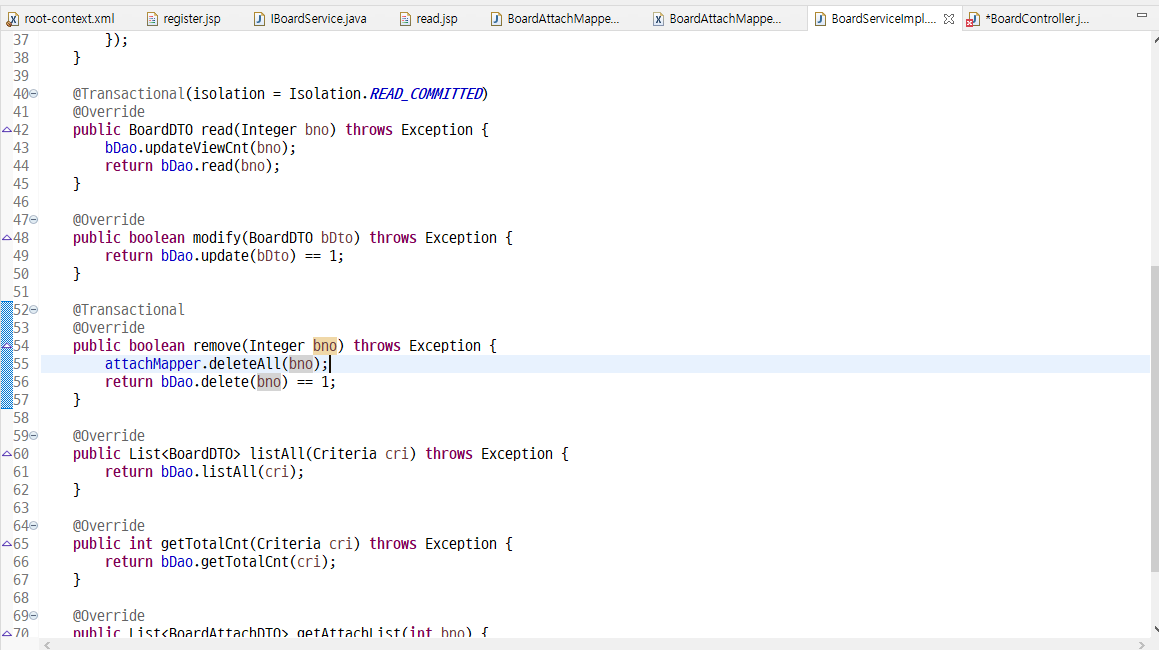

BoardServiceImpl의 삭제메소드 수정

@Transactional
@Override
public boolean remove(Integer bno) throws Exception {
    attachMapper.deleteAll(bno);
    return bDao.delete(bno) == 1;
}



BoardController에서 메소드 추가 및 수정(많아서 전체 복붙함)

@Controller
@RequestMapping("/board")
@Log4j
public class BoardController {

	@Autowired
	private IBoardService service;

	private String uploadPath = "D:\\PDH\\workspace\\sts\\springstudent\\src\\main\\webapp\\resources\\fileUpload";

	// 목록 전체 조회
	@RequestMapping(value = "/list", method = RequestMethod.GET)
	public void listAll(Criteria cri, Model model) throws Exception {
		log.info("show all list.....................");

		model.addAttribute("list", service.listAll(cri));

		int total = service.getTotalCnt(cri);
		log.info("total : " + total);

		model.addAttribute("pageMaker", new PageDTO(cri, total));
	}

	// 등록
	@RequestMapping(value = "/register", method = RequestMethod.GET)
	public void registerGET() throws Exception {
		log.info("register get........................");
	}

	@RequestMapping(value = "/register", method = RequestMethod.POST)
	public String registerPOST(BoardDTO bDto, RedirectAttributes rttr) throws Exception {
		log.info("register post........................");

		if(bDto.getAttachList() != null) {
			bDto.getAttachList().forEach(attach -> log.info(attach));
		}

		service.register(bDto);

		rttr.addFlashAttribute("result", bDto.getBno());

		return "redirect:/board/list";
	}

	// 목록 상세보기
	//@RequestMapping(value="/read", method = RequestMethod.GET)
	//public void read(@RequestParam("bno") int bno, Model model) throws Exception {
	//	log.info("show read.....................");

	//	model.addAttribute("board", service.read(bno));
	//}

	// 수정
	//@RequestMapping(value = "/modify", method = RequestMethod.GET)
	//public void modifyGET(@RequestParam("bno") int bno, Model model) throws Exception {
	//	log.info("modify get...............");

	//	model.addAttribute("board", service.read(bno));
	//}

	// 상세 + 수정(다중맵핑)
	@RequestMapping(value = {"/read", "/modify"}, method = RequestMethod.GET)
	public void modifyGET(@RequestParam("bno") int bno, @ModelAttribute("cri") Criteria cri, Model model) throws Exception {
		log.info("read or modify..................");

		model.addAttribute("board", service.read(bno));
	}

	@RequestMapping(value = "/modify", method = RequestMethod.POST)
	public String modifyPOST(BoardDTO bDto, @ModelAttribute("cri") Criteria cri, RedirectAttributes rttr) throws Exception {
		log.info("modify post...............");

		if(service.modify(bDto)) {
			rttr.addFlashAttribute("result", "success");
		}

		rttr.addAttribute("pageNum", cri.getPageNum());
		rttr.addAttribute("amount", cri.getAmount());
		rttr.addAttribute("type", cri.getType());
		rttr.addAttribute("keyword", cri.getKeyword());

		return "redirect:/board/list";
	}

	// 삭제
	@RequestMapping(value = "/remove", method = RequestMethod.POST)
	public String remove(@RequestParam("bno") int bno, @ModelAttribute("cri") Criteria cri, RedirectAttributes rttr) throws Exception {
		log.info("remove..................");

		List<BoardAttachDTO> attachList = service.getAttachList(bno);

		if(service.remove(bno)) {
			deleteFiles(attachList);
			rttr.addFlashAttribute("result", "success");
		}

		rttr.addAttribute("pageNum", cri.getPageNum());
		rttr.addAttribute("amount", cri.getAmount());
		rttr.addAttribute("type", cri.getType());
		rttr.addAttribute("keyword", cri.getKeyword());

		return "redirect:/board/list";
	}

	// 첨부파일 조회
	@GetMapping(value = "/getAttachList",
				produces = MediaType.APPLICATION_JSON_UTF8_VALUE)
	@ResponseBody
	public ResponseEntity<List<BoardAttachDTO>> getAttachList(int bno) {
		log.info("getAttachList : " + bno);

		return new ResponseEntity<>(service.getAttachList(bno), HttpStatus.OK);
	}

	private void deleteFiles(List<BoardAttachDTO> attachList) {
		if (attachList == null || attachList.size() == 0) {
			return;
		}

		log.info("delete attach files...............");
		log.info(attachList);

		attachList.forEach(attach -> {
			try {
				Path file = Paths.get(uploadPath + "\\" + attach.getUploadPath() + "\\" + attach.getUuid() + "_" + attach.getFileName());

				Files.deleteIfExists(file);

				if (Files.probeContentType(file).startsWith("image")) {
					Path thumbNail = Paths.get(uploadPath + "\\" + attach.getUploadPath() + "\\s_" + attach.getUuid() + "_" + attach.getFileName());

					Files.delete(thumbNail);
				}
			} catch (Exception e) {
				log.error("delete file error " + e.getMessage());
			}
		});
	}

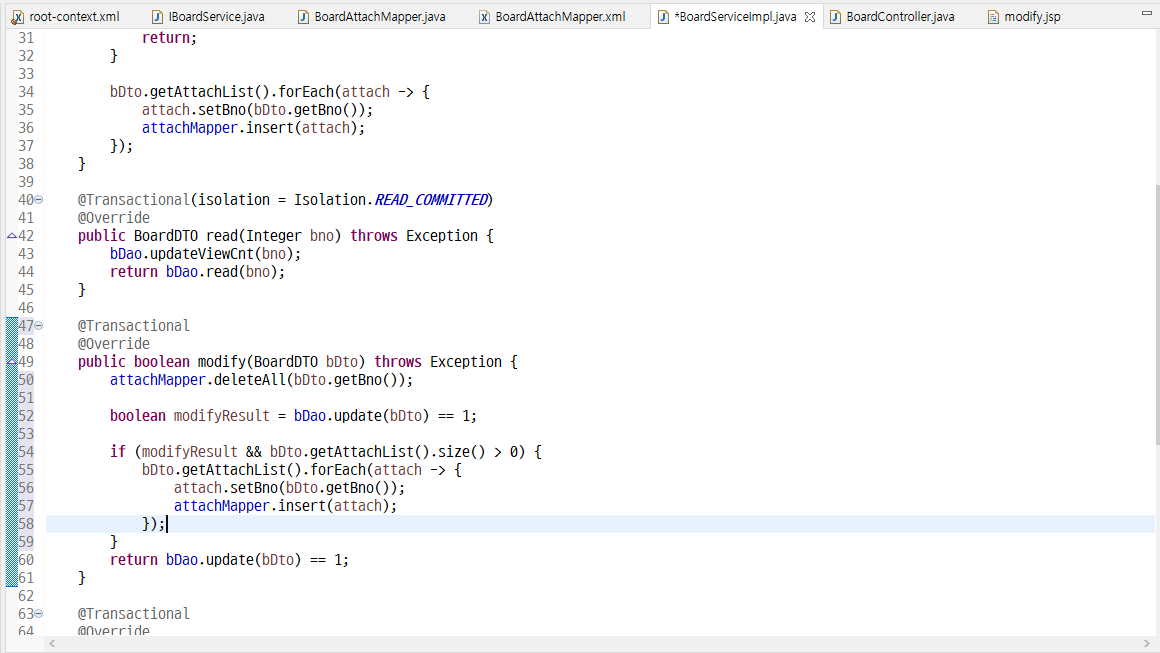

BoardServiceImpl 에서 수정 메소드 코드 수정

@Transactional
@Override
public boolean modify(BoardDTO bDto) throws Exception {
    attachMapper.deleteAll(bDto.getBno());

    boolean modifyResult = bDao.update(bDto) == 1;

    if (modifyResult && bDto.getAttachList().size() > 0) {
        bDto.getAttachList().forEach(attach -> {
            attach.setBno(bDto.getBno());
            attachMapper.insert(attach);
        });
    }
    return bDao.update(bDto) == 1;
}



modify.jsp 코드 수정

<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%>
<%@ taglib uri="http://java.sun.com/jsp/jstl/core" prefix="c"%>
<%@ taglib uri="http://java.sun.com/jsp/jstl/fmt" prefix="fmt"%>

<%@include file="../includes/header.jsp"%>

<div class="row">
<c:set var="contextPath" value="${pageContext.request.contextPath == '/' ? '' : pageContext.request.contextPath }" scope="application" />
  <div class="col-lg-12">
    <h1 class="page-header">Board Modify</h1>
  </div>
  <!-- /.col-lg-12 -->
</div>
<!-- /.row -->

<div class="row">
  <div class="col-lg-12">
    <div class="panel panel-default">

      <div class="panel-heading">Board Modify Page</div>
      <!-- /.panel-heading -->
      <div class="panel-body">

	  <form action="${contextPath}/board/modify" method="post" role="form">
	  	 <input type="hidden" name="pageNum" value="${cri.pageNum}">
	  	 <input type="hidden" name="amount" value="${cri.amount}">
		 <input type="hidden" name="type" value="${cri.type}">
		 <input type="hidden" name="keyword" value="${cri.keyword}">
         <div class="form-group">
           <label>Bno</label> <input class="form-control" name="bno" value="${board.bno }" readonly="readonly">
         </div>

         <div class="form-group">
           <label>Title</label> <input class="form-control" name="title" value="${board.title }">
         </div>

         <div class="form-group">
           <label>Text area</label>
           <textarea class="form-control" rows="3" name="content">${board.content }</textarea>
         </div>

         <div class="form-group">
           <label>Writer</label> <input class="form-control" name="writer" value="${board.writer }" readonly="readonly">
         </div>
         <!-- html의 data- 속성 이용 -->
         <button type="submit" data-oper="modify" class="btn btn-default">Modify</button>
         <button type="submit" data-oper="remove" class="btn btn-danger">Remove</button>
         <button type="submit" data-oper="list" class="btn btn-info">List</button>
	  </form>

      </div>
      <!--  end panel-body -->

    </div>
    <!--  end panel-body -->
  </div>
  <!-- end panel -->
</div>
<!-- /.row -->

<div class='bigPictureWrapper'>
  <div class='bigPicture'>
  </div>
</div>

<style>
	.uploadResult {
		width:100%;
		background-color: gray;
	}

	.uploadResult ul{
		display:flex;
		flex-flow: row;
		justify-content: center;
		align-items: center;
	}
	.uploadResult ul li {
		list-style: none;
		padding: 10px;
		align-content: center;
		text-align: center;
	}

	.uploadResult ul li img{
		width: 100px;
	}

	.uploadResult ul li span {
		color:white;
	}

	.bigPictureWrapper {
		position: absolute;
		display: none;
		justify-content: center;
		align-items: center;
		top:0%;
		width:100%;
		height:100%;
		background-color: gray;
		z-index: 100;
		background:rgba(255,255,255,0.5);
	}

	.bigPicture {
		position: relative;
		display:flex;
		justify-content: center;
		align-items: center;
	}

	.bigPicture img {
		width:600px;
	}
</style>

<div class="row">
  <div class="col-lg-12">
    <div class="panel panel-default">

      <div class="panel-heading">Files</div>
      <!-- /.panel-heading -->
      <div class="panel-body">
        <div class="form-group uploadDiv">
            <input type="file" name="uploadFile" multiple="multiple">
        </div>

        <div class="uploadResult">
          <ul>

          </ul>
        </div>
      </div>
      <!--  end panel-body -->

    </div>
    <!--  end panel-body -->
  </div>
  <!-- end panel -->
</div>
<!-- /.row -->

<script type="text/javascript">
$(document).ready(function() {
	var formObj = $("form");

	$("button").on("click", function(e) {
		e.preventDefault();

		var operation = $(this).data("oper");

		console.log(operation);

		if(operation === "remove") {
			formObj.attr("action", "${contextPath}/board/remove");
		} else if(operation === "list") {
			//move to list
			formObj.attr("action", "${contextPath}/board/list").attr("method","get");

			var pageNumTag = $("input[name='pageNum']").clone();
			var amountTag = $("input[name='amount']").clone();
			var keywordTag = $("input[name='keyword']").clone();
			var typeTag = $("input[name='type']").clone();

			formObj.empty();

			formObj.append(pageNumTag);
			formObj.append(amountTag);
			formObj.append(keywordTag);
			formObj.append(typeTag);
			//self.location = "${contextPath}/board/list";

			//return;
		} else if (operation === "modify") {
	        console.log("submit clicked");

	        var str = "";

	        $(".uploadResult ul li").each(function(i, obj){

	          var jobj = $(obj);

	          console.dir(jobj);

	          str += "<input type='hidden' name='attachList["+i+"].fileName' value='"+jobj.data("filename")+"'>";
	          str += "<input type='hidden' name='attachList["+i+"].uuid' value='"+jobj.data("uuid")+"'>";
	          str += "<input type='hidden' name='attachList["+i+"].uploadPath' value='"+jobj.data("path")+"'>";
	          str += "<input type='hidden' name='attachList["+i+"].filetype' value='"+ jobj.data("type")+"'>";

	        });

	        formObj.append(str).submit();
		}

		formObj.submit();
	});
});
</script>

<script>
$(document).ready(function() {
  (function() {

    var bno = "${board.bno}";

    $.getJSON("${contextPath}/board/getAttachList", {bno: bno}, function(arr) {

      console.log(arr);

      var str = "";


      $(arr).each(function(i, attach){

          //image type
          if(attach.filetype){
            var fileCallPath = encodeURIComponent(attach.uploadPath + "/s_" + attach.uuid + "_" + attach.fileName);

            str += "<li data-path='" + attach.uploadPath + "' data-uuid='" + attach.uuid + "' "
            str +=" data-filename='" + attach.fileName +"' data-type='" + attach.filetype + "' ><div>";
            str += "<span> "+ attach.fileName + "</span>";
            str += "<button type='button' data-file=\'" + fileCallPath + "\' data-type='image' "
            str += "class='btn btn-warning btn-circle'><i class='fa fa-times'></i></button><br>";
            str += "<img src='${contextPath}/display?fileName=" + fileCallPath + "'>";
            str += "</div>";
            str +"</li>";
          } else {
            str += "<li data-path='" + attach.uploadPath + "' data-uuid='" + attach.uuid + "' "
            str += "data-filename='" + attach.fileName + "' data-type='" + attach.filetype + "' ><div>";
            str += "<span> "+ attach.fileName + "</span><br/>";
            str += "<button type='button' data-file=\'" + fileCallPath + "\' data-type='file' "
            str += " class='btn btn-warning btn-circle'><i class='fa fa-times'></i></button><br>";
            str += "<img src='${contextPath}/resources/img/attach.png'></a>";
            str += "</div>";
            str +"</li>";
          }
       });
      $(".uploadResult ul").html(str);
    });//end getjson
  })();//end function


  $(".uploadResult").on("click", "button", function(e){

    console.log("delete file");

    if(confirm("Remove this file? ")){

      var targetLi = $(this).closest("li");
      targetLi.remove();
    }
  });

  var regex = new RegExp("(.*?)\.(exe|sh|zip|alz)$");
  var maxSize = 5242880; //5MB

  function checkExtension(fileName, fileSize){

    if(fileSize >= maxSize){
      alert("파일 사이즈 초과");
      return false;
    }

    if(regex.test(fileName)){
      alert("해당 종류의 파일은 업로드할 수 없습니다.");
      return false;
    }
    return true;
  }

  $("input[type='file']").change(function(e){

    var formData = new FormData();

    var inputFile = $("input[name='uploadFile']");

    var files = inputFile[0].files;

    for(var i = 0; i < files.length; i++){

      if(!checkExtension(files[i].name, files[i].size) ){
        return false;
      }
      formData.append("uploadFile", files[i]);

    }

    $.ajax({
      url: "${contextPath}/uploadAjaxAction",
      processData: false,
      contentType: false,data:
      formData,type: "POST",
      dataType:"json",
        success: function(result){
          console.log(result);
		  showUploadResult(result);

      }
    }); //$.ajax

  });

  function showUploadResult(uploadResultArr){

    if(!uploadResultArr || uploadResultArr.length == 0){ return; }

    var uploadUL = $(".uploadResult ul");

    var str ="";

    $(uploadResultArr).each(function(i, obj){

		if(obj.image){
			var fileCallPath =  encodeURIComponent(obj.uploadPath + "/s_"+obj.uuid + "_" + obj.fileName);
			str += "<li data-path='" + obj.uploadPath + "'";
			str +=" data-uuid='" + obj.uuid + "' data-filename='" + obj.fileName + "' data-type='" + obj.image + "'"
			str +" ><div>";
			str += "<span> "+ obj.fileName + "</span>";
			str += "<button type='button' data-file=\'" + fileCallPath + "\' "
			str += "data-type='image' class='btn btn-warning btn-circle'><i class='fa fa-times'></i></button><br>";
			str += "<img src='${contextPath}/display?fileName=" + fileCallPath + "'>";
			str += "</div>";
			str +"</li>";
		}else{
			var fileCallPath = encodeURIComponent(obj.uploadPath + "/" + obj.uuid + "_" + obj.fileName);
		    var fileLink = fileCallPath.replace(new RegExp(/\\/g),"/");

			str += "<li "
			str += "data-path='" + obj.uploadPath + "' data-uuid='" + obj.uuid+"' data-filename='" + obj.fileName + "' data-type='" + obj.image + "' ><div>";
			str += "<span> " + obj.fileName + "</span>";
			str += "<button type='button' data-file=\'" + fileCallPath + "\' data-type='file' "
			str += "class='btn btn-warning btn-circle'><i class='fa fa-times'></i></button><br>";
			str += "<img src='${contextPath}/resources/img/attach.png'></a>";
			str += "</div>";
			str +"</li>";
		}

    });

    uploadUL.append(str);
  }

});
</script>

<%@include file="../includes/footer.jsp"%>
